SLF agitated kettle
Applications
The man applications refer to reaction process of production such as the mixing, abstraction, crystallization, heating, polymerization and dissolution in pharmaceutical, foodstuff, petrochemical engineering, agriculture and building industries.
Performance features----Capable of meeting with all processing process with various stirring heat ----Materials in the kettle can be heated during mixing ----Optimized design meets with various kinds of manufacturing process requirements Technical specifications
|
Type |
Nominal capacity
（L） |
Diameter
（mm） |
Jacket diameter
（mm） |
Central ring of support
（mm） |
Number of supports |
Power
（kw） |
Actual capacity （L） |
|
SLF50 |
50 |
Φ400 |
Φ500 |
Φ650 |
2 |
0.5 |
60 |
|
SLF100 |
100 |
Φ500 |
Φ600 |
Φ800 |
2 |
1.1 |
120 |
|
SLF300 |
300 |
Φ800 |
Φ900 |
Φ1100 |
4 |
2.2 |
360 |
|
SLF500 |
500 |
Φ900 |
Φ1000 |
Φ1328 |
4 |
2.2 |
600 |
|
SLF1000 |
1000 |
Φ1200 |
Φ1300 |
Φ1595 |
4 |
4.0 |
1200 |
|
SLF2000 |
2000 |
Φ1400 |
Φ1500 |
Φ1745 |
4 |
5.5 |
2400 |
|
SLF3000 |
3000 |
Φ1500 |
Φ1650 |
Φ1895 |
4 |
7.5 |
3600 |
|
SLF4000 |
4000 |
Φ1600 |
Φ1750 |
Φ2015 |
4 |
7.5 |
4800 |
|
SLF5000 |
5000 |
Φ1800 |
Φ1950 |
Φ2265 |
4 |
7.5 |
6000 | Note:
1. Material of the agitated kettle in contacting with substance:
C: carbon steel, S: stainless steel, T: special material
2. Please make clear material, heating mode and impeller description during ordering.
3. Dimensions in the table are only for references. The company can offer special dimension design and production.

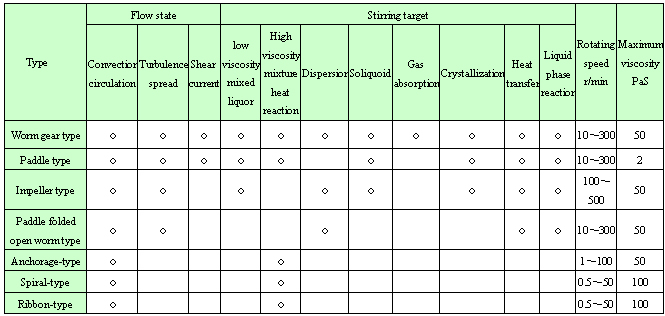

Table for model selection
Note: О denotes good performance
|
|
